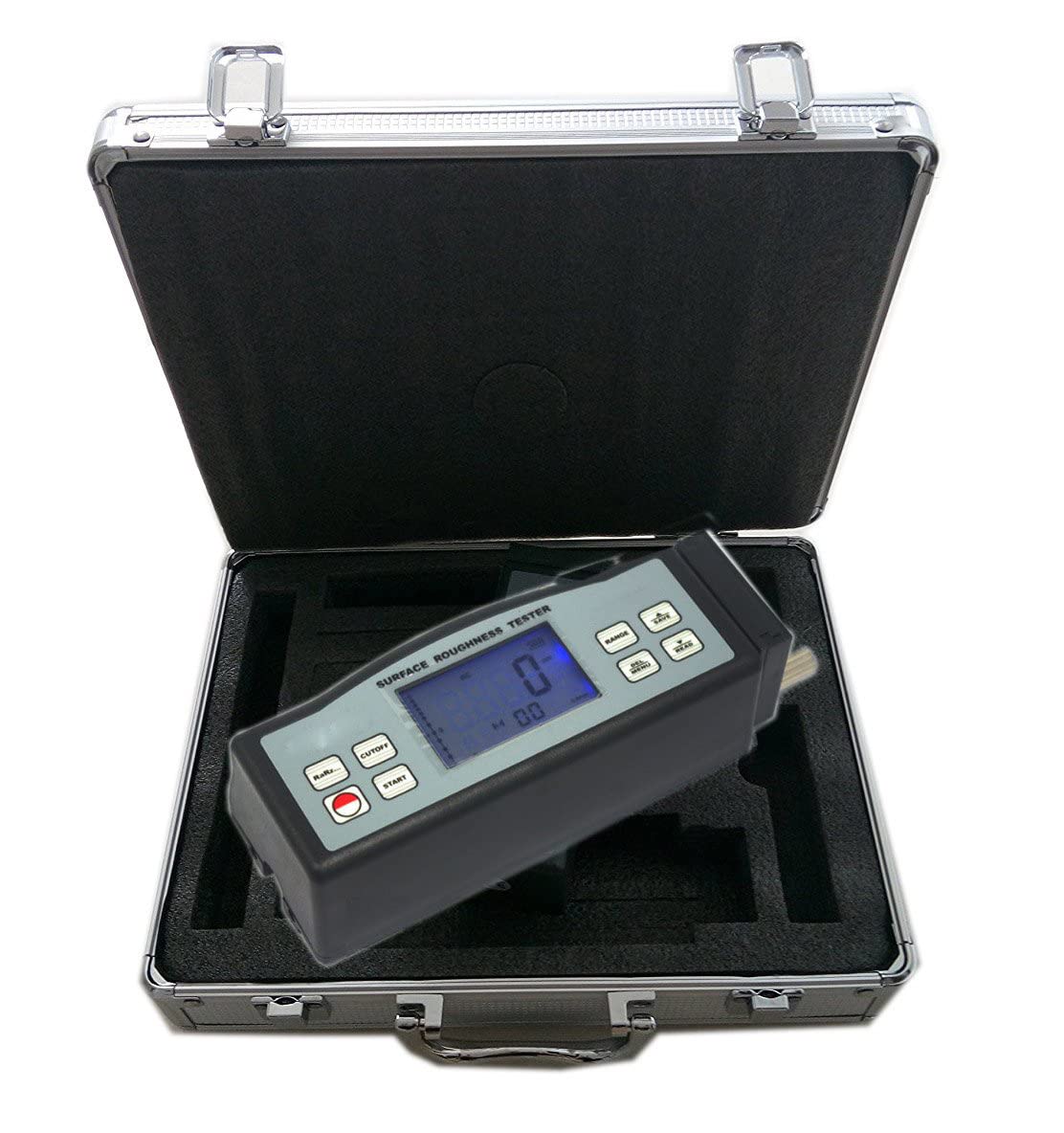

Surface Roughness Tester Surftest Profilometer with 4 Parameters Ra Rz Rq Rt RS232C Interface

Application: Widely used in production site to measure surface roughness of various machinery-processed parts. Manual or automatic shut down. The tester can be switched off by pressing the Power key at any time. On the other hand, the tester will power itself off about 5 minutes after the last key operation. Technical Specifications * Multiple parameter measurement: Ra, Rz, Rq, Rt *Measuring Range: Ra, Rq: 0.005~16.00µm / 0.020~629.9µinch; Rz, Rt: 0.020~160.0µm / 0.078~6299µinch * Accuracy: <±10% * Fluctuation of Display Value: ≤6% * Resolution: 0.001/0.01/0.1 * Sensor: Radius of Probe Pin: 5µm Material of Probe Pin: Diamond Measurement Force of Probe: 4mN(0.4gf) Probe Angle: 90º Vertical Radius of Guiding Head: 48 mm Maximum Driving Stroke: 17.5mm/0.7inch Cutoff length(l): 0.25mm,0.8mm,2.5mm * Driving Speed Sampling: When Length=0.25mm,Vt=0.135 mm/s When Length=0.8mm,Vt=0.5mm/s When Length=2.5mm,Vt=1mm/s Returning: Vt=1mm/s * Profile Digital Filter: RC,PC-RC,GAUSS,D-P * Evaluation Length: 1~5L Optional * Data Memorize: 7 Groups * Operating Conditions: Temp:0~50ºC, Humidity:<80%RH * Power Supply: Bulit-in Rechargeable Li-ion Battery * Dimensioms: 140x52x48mm * Weight: 420g * Standard Accessories: Main Unit, Standard Sample Plate SSP-100, Standard Sensor SSP-100 Small Screwdriver, Power Adapter, Carrying Case ( B09 ), Operation Manual * Optinal Accessories: RS-232C Cable with Software, Bluetooth Adapter with Software, Extension Rod SER-150, Groove Stylus SRP-110, Curvature Probe SRP-120, Measurement Stand SRS-1

• Display: 4 digits, 10 mm LCD, with blue backlight Parameters: Ra, Rz, Rq, Rt Measuring Range Ra, Rq: 0.005-16.00um/0.020-629.9uinch Rz,Rt: 0.020-160.0um/0.078-6299uinch Accuracy: Not more than 10% Fluctuation of display value: Not more than 6%
• Sensor : Test Principle: Inductance type Radius of Probe Pin: 5um Material of Probe Pin: Diamond Dynamo-measurement of Probe: 4mN(0.4gf) Probe Angle: 90 Vertical Radius of Guiding Head: 48mm Maximum driving stroke: 17.5mm/0.7inch Cutoff length (l): 0.25mm / 0.8mm / 2.5mm optional Evaluation length: 5l
• Driving speed: sampling length = 0.25mm Vt=0.135mm/s sampling length = 0.8mm Vt=0.5mm/s sampling length = 2.5mm Vt=1mm/s returning Vt=1mm/s Profile digital filter Filtered Profile: RC Filtered Profile: PC-RC Filtered Profile: Gauss Non-Filtered Profile: D-P
• Resolution : .001um if reading less than 10um 0.01um if reading more than 10um but less than 100um 0.1um if reading more than 100um Evaluation length : 5 cut-off Power Li-ion battery: rechargeable Operating conditions: Temp. 0~50centidegree Humidity <80% Size:140x57x48 mm (5.5x2.2x1.9 inch) N.W.: about 420 g
• Multiple parameter measurement: Ra, Rz, Rq, Rt
