Single Solar Frequency Converter, 2.2KW Single Phase PV Inverter with MPPT Controller, Speed Control, Input Voltage 200‑400VDC, Output Voltage 0‑220VAC

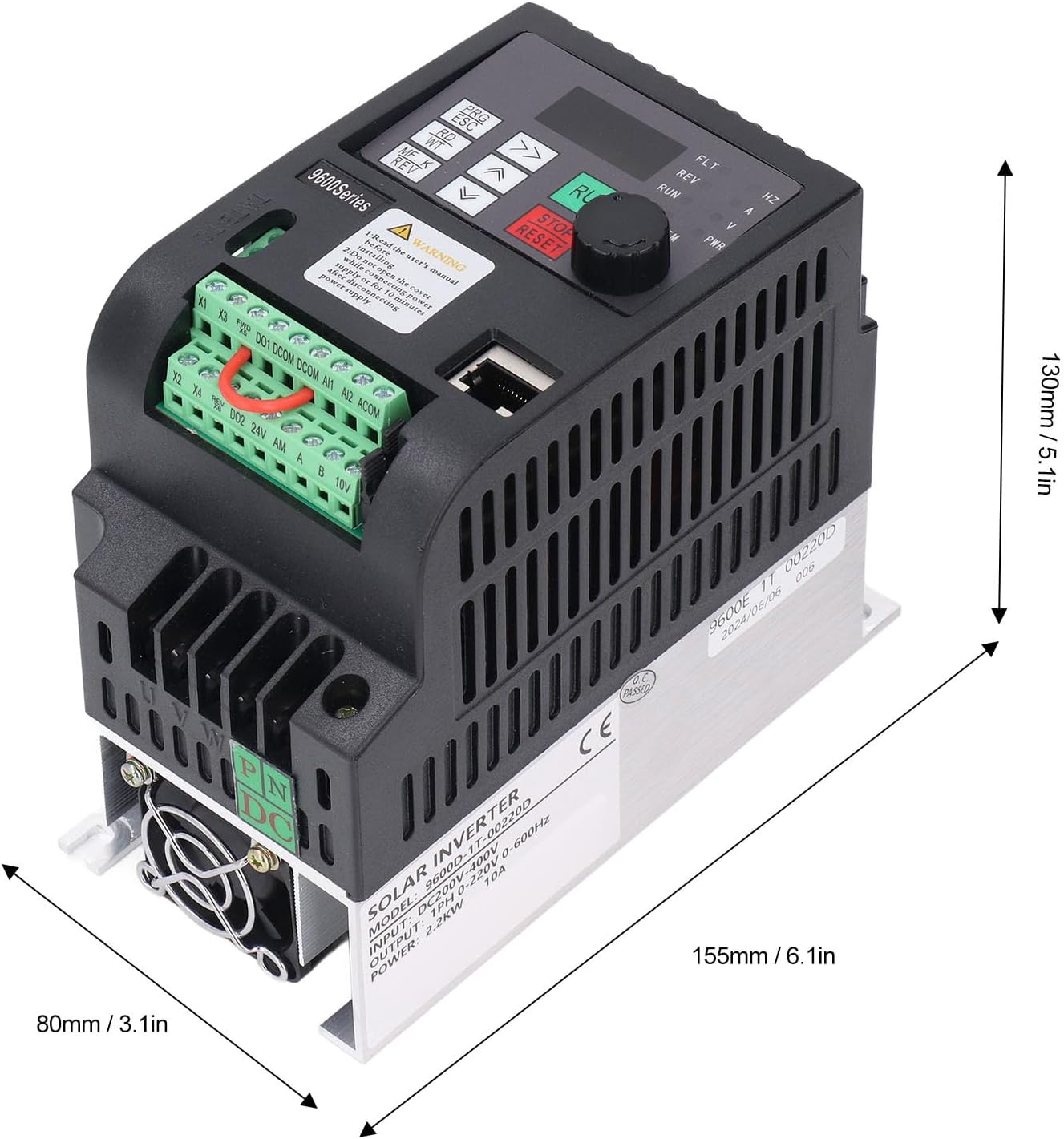

Specification: Item Type: Single Phase Solar Inverter Material: Flame Retardant PC, Aluminum Rated Power: 2.2KW Rated Current: 10A Size: Approx. 130 x 80 x 155mm / 5.1 x 3.1 x 6.1in Built in MPPT Controller: Support Unattended Automatic Start and Stop: Peripheral Interface Functions: Programmable Digital Input: 4 Inputs Programmable Analog Input: AI1: 0-10V input, : 0-5V or panel potentiometer input Open Collector Output: 1 Output Relay Output: 1 Output Analog Output: 1 Output, 0ptional 4-20mA or 0-10V Technical Performance Features: Control: No PG vector, V/F control Overload Capacity: 150% rated current 60s; 180% rated current 10s Starting Torsion: No PG Vector: 0.5Hz/150% (SVC) Speed Ratio: No PG Vector: 1:100 Speed Control Accuracy: PG Vector: Maximum Speed ±0.5 Carrier Frequency: 0.5k-15.0kHz Frequency Setting Mode: Digital setting, analog setting, serial communicating setting, multi speed, PID setting. PID Control Function Multi Speed Control Function: 8 speed control Swing Frequency Control Function Instantaneous Power off without Stopping Function /JOG Key Function: User defined multifunctional shortcut key Note: 1. The default upper frequency of this solar inverter is 50HZ, and the reversal function is turned off by default. If you need to change it, please follow the use manual. 2. If the water depth of the submersible pump exceeds 30 meters, it is recommended to enlarge one or two stages to select a inverter, and add a reactor between the inverter and the pump. Otherwise, the service life of the inverter will be reduced. 3. For 220 motor, the total voltage of solar panels connected in series should meet 200‑400V. For 380V motor, the total series voltage needs to meet 400‑700V. The total power of several groups of series solar panels in parallel is more than 1.2 times greater than the power of

• Working Parameters: Single phase solar frequency converter, the input voltage is 200‑400VDC, output voltage is 0‑220VAC, and the rated power is 2.2KW, efficient and convenient.

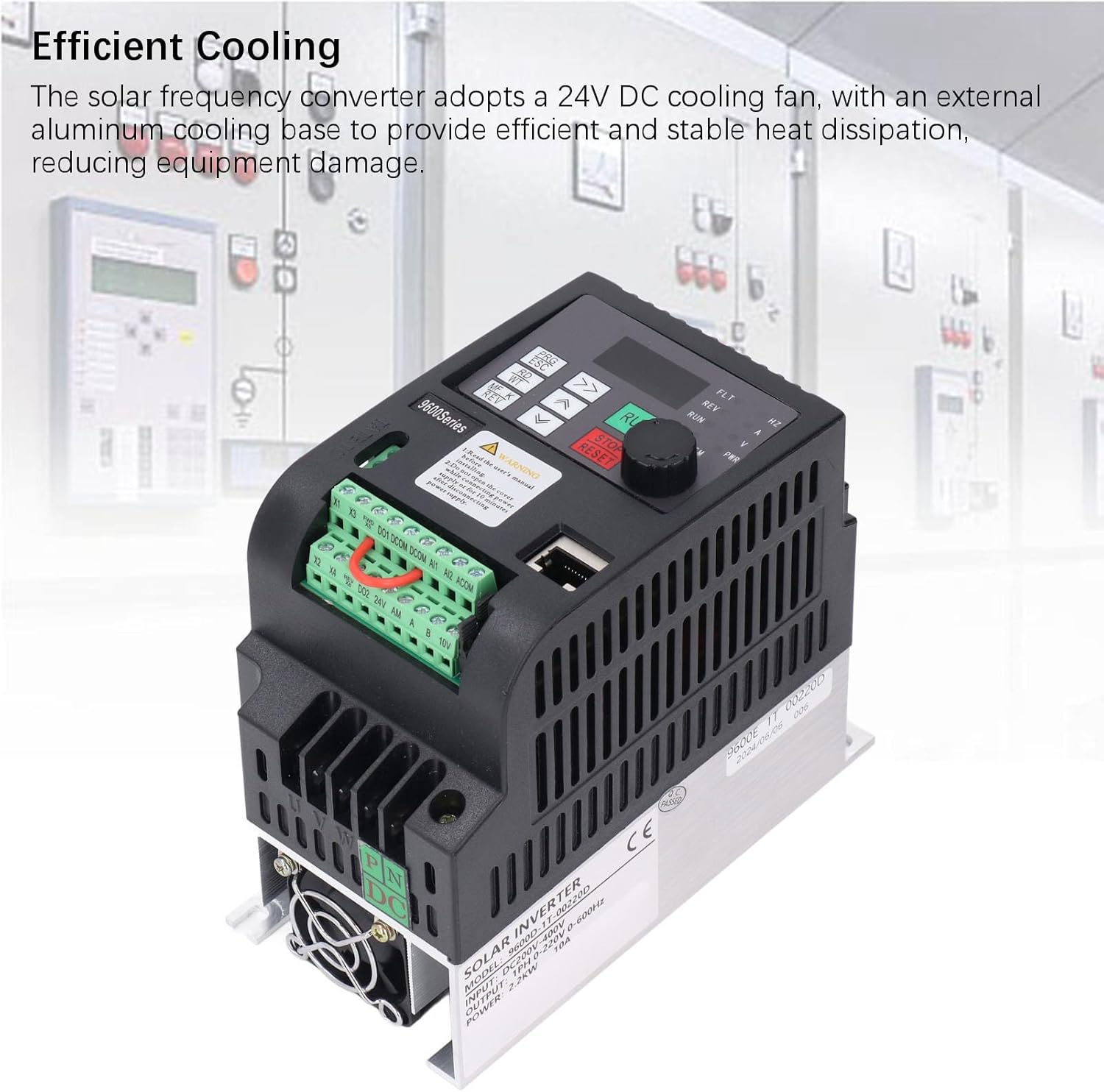

• Efficient Cooling: The solar frequency converter adopts a 24V DC cooling fan, with an external aluminum cooling base to provide efficient and stable heat dissipation, reducing equipment damage.

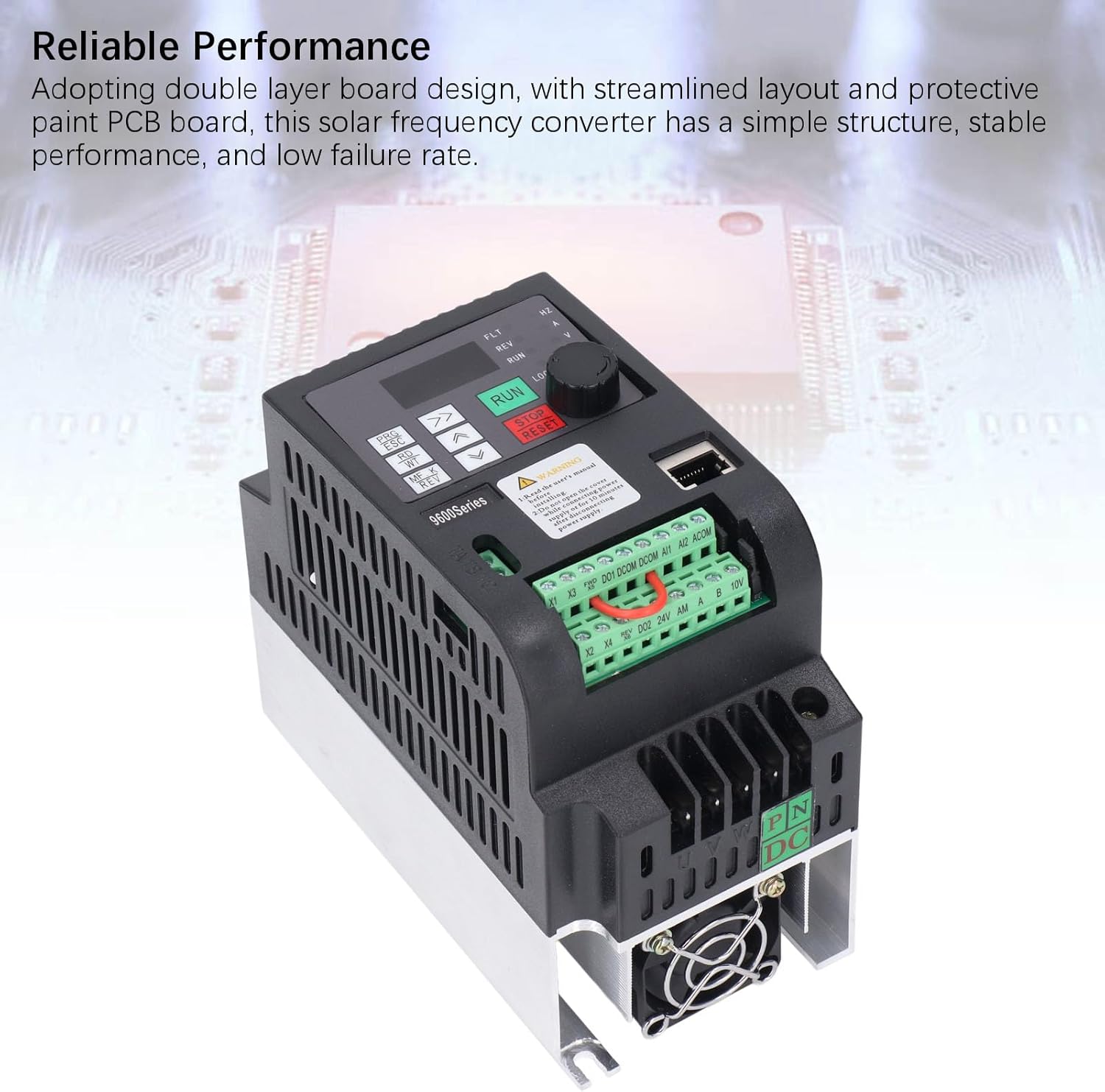

• Performance: Adopting double layer board design, with streamlined layout and protective paint PCB board, this solar frequency converter has a simple structure, and low failure rate.

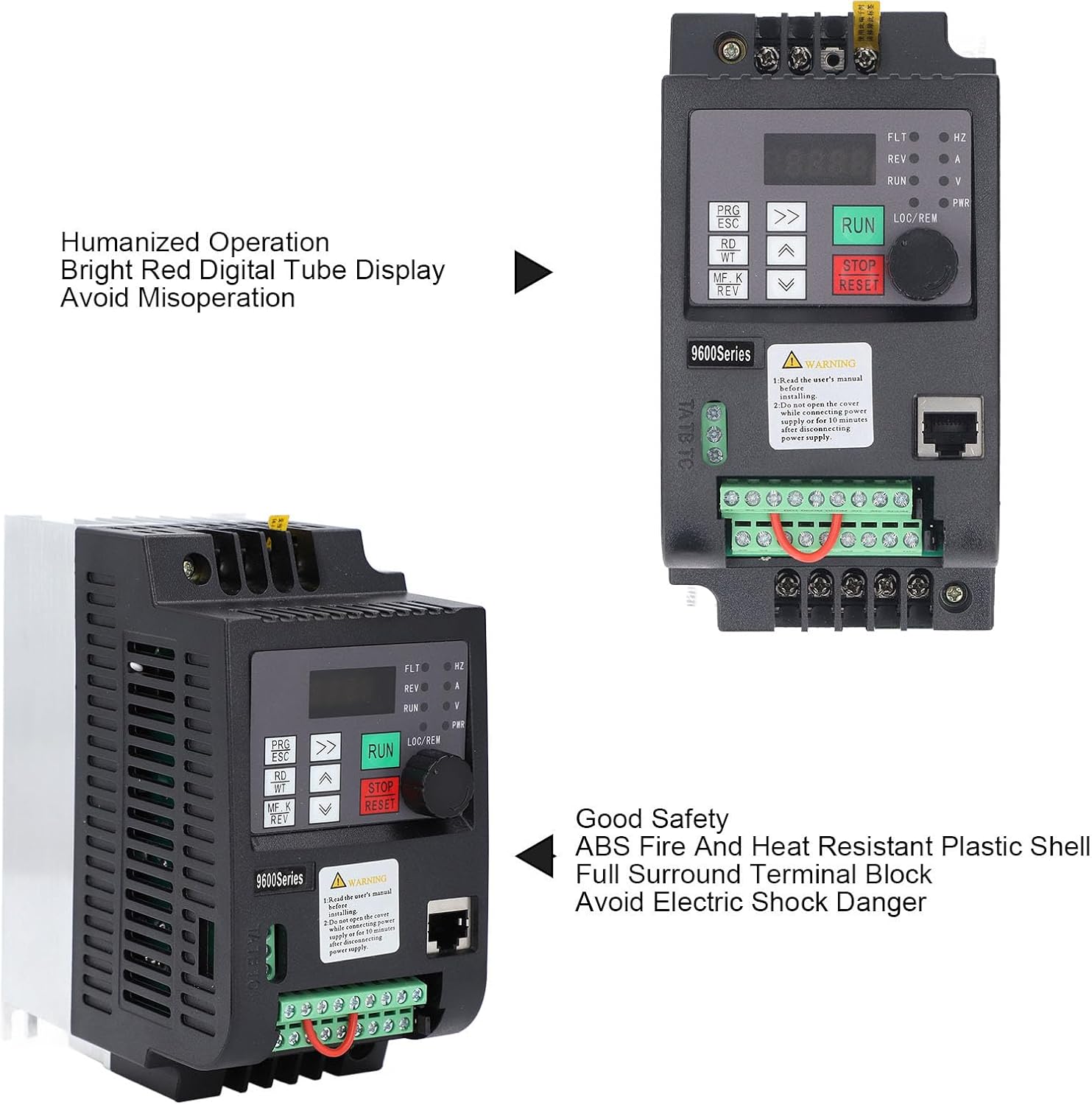

• Humanized Design: This solar PV inverter adopts a bright red digital tube display, which is clear and intuitive, with user friendly design, convenient to use, avoids non operation, so you can use it with confidence.
• and Practical: The shell of the solar inverter is made of fireproof PC plastic material, heat and The fully enclosed design of wiring terminals effectively avoids the electric shock.
