Simarine Pico Standard Battery Monitoring Set, Multi-Voltage System Monitoring, Lead Acid & Lithium Battery Compatible, Tank Monitoring, Shunt 300 A, 1 Alarm Signal Relay (Bezel, Black)
4.5 (122 items)
Limited Time SaleUS$305.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211089678 | Release Date | 2026/04/04 | List Price | US$203.60 | Model Number | 211089678 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- PICO battery monitor displays all data about your batteries’ voltage, state of charge, remaining ampere hours, time to charge or discharge, and battery compartment temperature. Designed not only for 12V systems, but also for monitoring several voltage systems with one device (12V, 24V, 48V). Shunts in the PICO Standard set have all together 6 resistance and 5 voltage inputs, 1 socket for a temperature sensor (sensor included), 1 current inputs and 1 built-in, programmable alarm signal relay.
- Wiring: Wire shunts either to the LOW (-) or HIGH side (+) if the voltage of the system doesn’t exceed 35V. If it does, the shunt must be wired to the LOW(-) side. Convenient for wiring on retrofitting for existing boats, campervans, trailers, RVs.

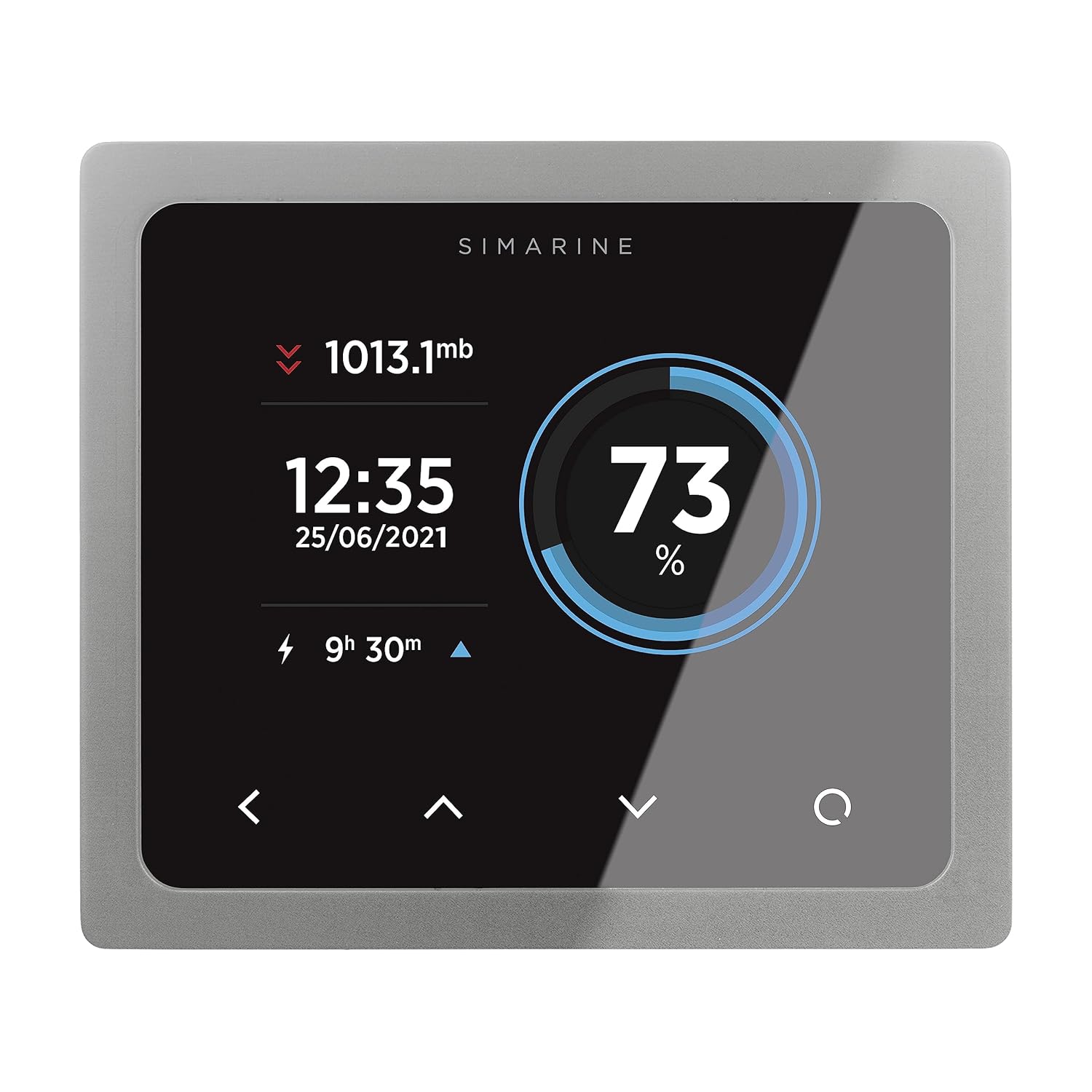

- Sleek design: PICO is sleek, slim, and compact. Available in 2 mount types and 2 colors (black, silver). Display is optically bonded. It features a high-resolution, 3.5 IPS screen with Gorilla Glass, a polarizing filter, and automatic illumination. The IP67-rated anodized aluminum unibody case is water- and dust-resistant.
- Simarine App: Monitor live data for batteries, tanks, temperatures, barograph. Configure your PICO and upgrade its firmware
- What’s in the box: PICO battery monitor, SC303 shunt, ST107 tank level and voltage module, data cable 5 m, shunt cover, fuse protected voltmeter cable 3 m, temperature sensor with connector 1 m, 3-year warranty.
| Color | Black |
|---|---|
| Model | Pico Standard |
| Brand Name | Simarine |
| Manufacturer | Simarine |
| Power Source | Corded Electric |
| Measurement Type | Voltmeter |
| Included Components | Splitter |
| Upper Temperature Rating | 50 Degrees Celsius |
| Minimum Operating Voltage | 12 Volts |
