CyberPower MBP15A6 Maintenance Bypass PDU, 120V/15A, 6 Outlets, 1U Rackmount Black
4.8 (67 items)
Limited Time SaleUS$127.80 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209127835 | Release Date | 2026/03/29 | List Price | US$85.20 | Model Number | 209127835 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

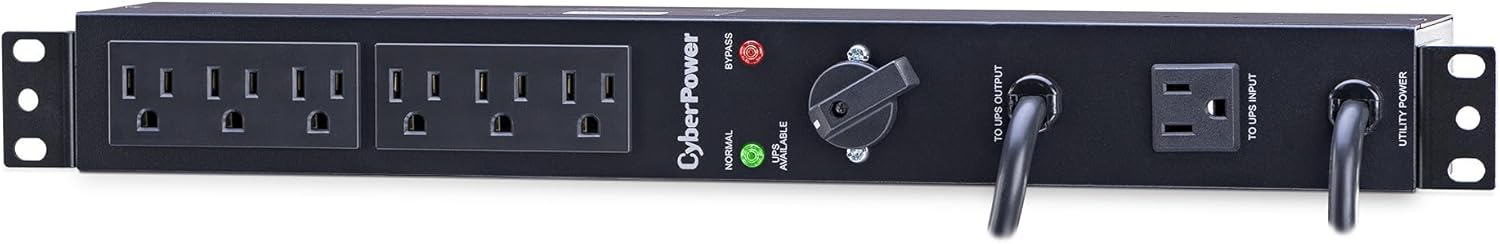

The CyberPower MBP15A6, a 6-outlet (rear), 1U Maintenance Bypass Power Distribution Unit (MBP PDU), provides 100-120 VAC 15A output (derated to 12A) to 6 NEMA 5-15R receptacles. Designed for datacenters and other electrically demanding applications, the MBP15A6 allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of the connected equipment when performing maintenance, replacing batteries, or installing a new UPS. A 6-foot AC cord connects to utility power; a 3.3-foot AC cord connects to the output power of the UPS. The UPS draws input power from the MBP15A6 through a dedicated NEMA 5-15R separate from the outlets for connected devices. When the switch on the front of the MBP15A6 is turned from Normal to Bypass, or from Bypass to Normal, the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active. Rugged, industrial-grade metal housing protects the MBP15A6. With a 1U form factor, this PDU can be mounted in a standard server rack. Its mounting hardware also enables it to be connected to a UPS for tower configurations. The MBP15A6 is UL and RoHS compliant. A three-year limited warranty covers the PDU for three years and connected equipment for as long as you own the product.
- 100-120VAC - 15A (Derated to 12A) ELECTRICAL CAPACITY: The 1U rackmount MBP15A6 Maintenance Bypass Power Distribution Unit (PDU) allows for the seamless transfer of an electrical load from UPS power to utility power for connected equipment
- NETWORK-GRADE OUTLETS: Six NEMA 5-15R outlets provide efficient power distribution in demanding IT or industrial environments; INPUT: Two NEMA 5-15P outlets with 6 foot utility cord, 3.3 foot UPS cord
- MANUAL BYPASS SWITCH: When the switch is turned to Normal, connected equipment is supplied by UPS output; When the switch is turned to Bypass, connected equipment is supplied by utility power
- DURABLE METAL HOUSING: The 1U form factor is made to be mounted in a standard server rack; Mounting hardware allows the PDU to be connected to a UPS for tower configurations
- THREE YEAR LIMITED LIFETIME WARRANTY
| UPC | 649532614592 |
|---|---|
| Brand | CyberPower |
| Color | Black |
| Shape | Rectangle |
| Voltage | 120 |
| Amperage | 15 Amps |
| Plug Type | Type B |
| Item Weight | 3.5 Pounds |
| Manufacturer | CyberPower Systems |
| Model Number | MBP15A6 |
| BuiltIn Media | Maintenance Bypass PDU^Mounting Hardware^Installation Guide |
| Item Type Name | Cyberpower Maintenance Bypass PDU MBP15A6 Power Distribution Unit - Rack-Mountable - 6 output connectors |
| Maximum Current | 15 Amps |
| Mfr Part Number | MBP15A6 |
| Number of Ports | 6 |
| Power Plug Type | Type B - 3 pin (North American) |
| Number of Outlets | 6 |
| Compatible Devices | -- Other -- |
| Enclosure Material | Metal |
| Warranty Description | 3 years |
| Item Dimensions L x W | 3"L x 17"W |
| Recommended Uses For Product | Indoor, Office, College Dorm Room |
| External Testing Certification | UL60950_1, cUL |
| Global Trade Identification Number | 00649532614592 |
| Other Special Features of the Product | Mountable |
