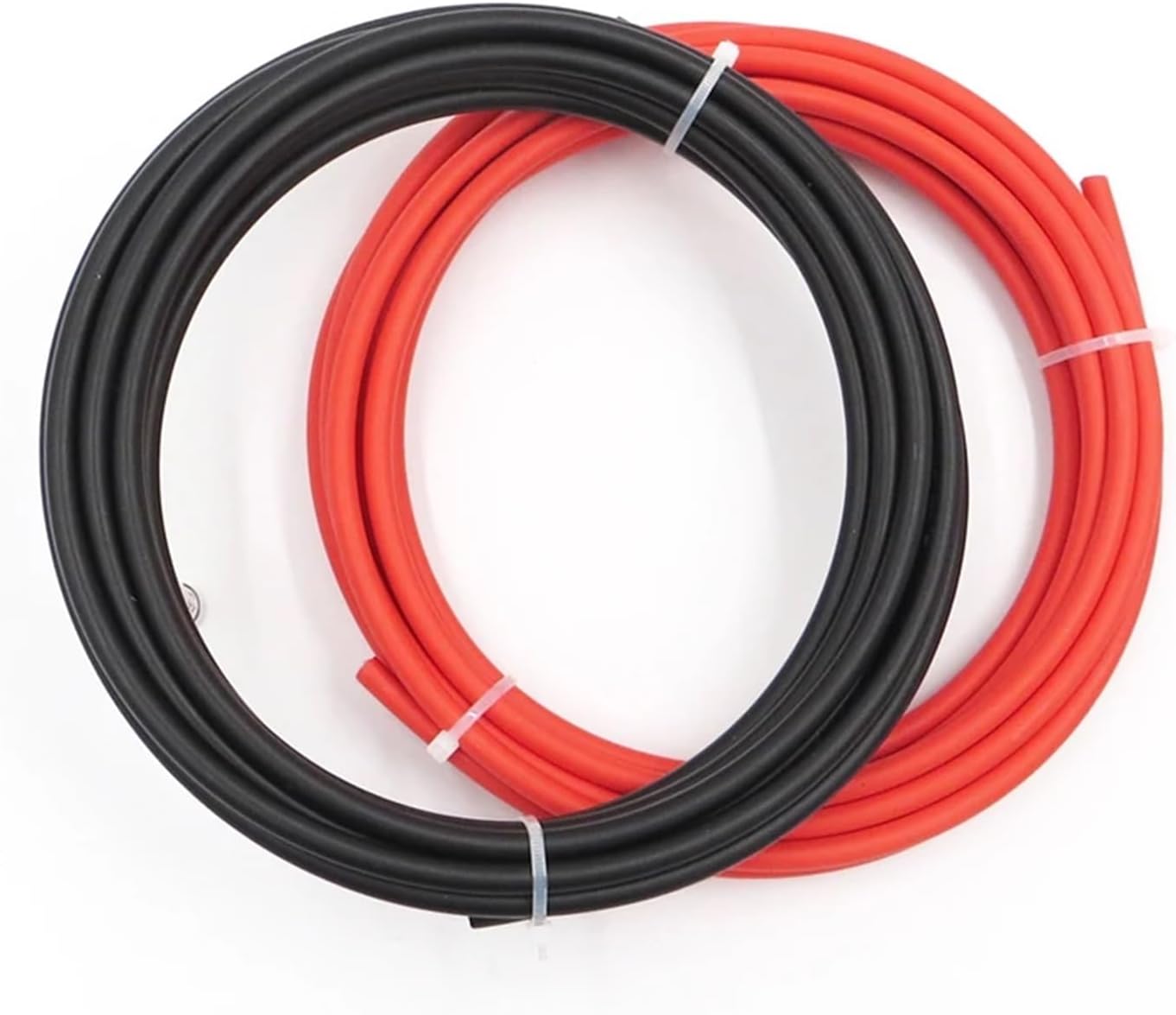

2.5mm2 14AWG Solar Power Cable Wire PV Cable TUV Cable(Black Cable,30M_14 AWG - 2.5MM2)

Cables5/10/20m High Performance 2.5mm² Solar PV Cable 14AWG Solar PV Cable Red And Black ColorApplicationSolar Cable used for interconnection wiring of grounded and ungrounded photovolatic power systems.Cable designConductor: fine wire strands of tinned copper wires, acccording IEC 60228, Class 5Insulation: halogen free PE, electron beam cross-linked. Color: BlackOuter jacket: halogen free and flame retardant PE, eletron beam cross-linked resistance against water, UV . Jacket Color: Black orRedTemperature rangeMax. temperature at conductor-40~120Temperature range-40~90 (min. 25 years)Electrical characteristicsNominal voltageU0/UAC 600/1000V, DC 900/1500VMat.DC voltage1800V (conductor-conductor,non earthed system,circuit not under load)AC-test-voltage6.5KVMin. Surface resistance of sheath10^9Min.bending radius5 x cable diameterOther testsaccorfing EN 50395Product DescriptionSize(mm² )Conductor dia.N/mmInsulationdia.(mm)CorecolorNominalJacketdia.(mm)RatedCurrentat60(A)JacketColor2.550/0.253.65Black5.2541Black2.550/0.253.65Black5.2541Red4.056/0.304.20Black6.0555Black4.056/0.304.20Black6.0555Red6.084/0.304.90Black6.5070Black6.084/0.304.90Black6.5070Red==========Voltage : 81-600V(include600V)Structure : Without modular telephone connectorsUse : Not TelecommunicationHigh-concerned chemical : NoneModel Number : 14 AWG - 2.5mm2Type : InsulatedConductor Type : StrandedConductor Material : CopperInsulation Material : PVCOrigin : Mainland Certification :
